Variables and templating
Read state, the previous node's output and secrets in any field with double-brace templates, and use the variable picker to insert them.
A flow remembers things in state: the phone number a user typed, the balance an API returned, the option they picked. You read state in any text field of a node by writing a template such as {{state.balance}}. When the node runs, the template is replaced with the value.
Writing a variable into state
Most nodes have an Output variable field: "Name this node's result so later nodes can read it." If you name a Menu node's output amount, whatever the user enters is saved as state.amount, and every node after it can read it.
| Node | How it writes state |
|---|---|
| Any node with Output variable | Saves its result under that name |
| Set Fields | Assigns one or more named fields at once |
| Function | Its return value is its result; the code can also read state directly |
| API and Integration | Save the whole response, or capture individual response fields into separate variables |
Output variable names use letters, numbers and underscores only, and cannot start with a number. Pick descriptive names such as transfer_amount or recipient_phone; you will see them again in the picker.
Reading a variable
Wrap the path in double braces:
Hi {{state.firstName}}, your balance is {{state.balance}}.| You write | You get |
|---|---|
{{state.name}} | A value saved in state under name |
{{state.order.id}} | A nested field of an object in state |
{{input}} | The value passed from the previous node |
input is the result of the node directly before this one. State is available everywhere in the session, so prefer state.* when a value has to survive more than one step.
Older syntax still works
Flows built before the double-brace syntax use ${state.name}. Both forms are accepted, and Buni.ai never rewrites the ones you already have. New references inserted by the picker use {{state.name}}, which is the only form voice (IVR) projects resolve. If a USSD, chatbot or automation project was last published before double braces were supported, republish it before relying on them.
Keep templates to plain paths. Voice projects substitute a path with its value and never evaluate an expression, so {{state.total * 2}} does not work there. Do arithmetic in a Set Fields or Function node and read the result.
Router conditions
A Router condition is compiled rather than displayed, so its value field has its own rules. Plain values are compared literally: true, 5000, yes. To compare against another variable, write it in braces: {state.tier} or {{state.tier}} both work. A value that starts with state. or is exactly input is also treated as a reference.
Secrets
Never paste an API key or password into a node. Store it once as a credential and reference it by name:
Authorization: Bearer ${CREDENTIALS.PAYMENTS_API_KEY}Credentials use the ${CREDENTIALS.NAME} form. Only the name is stored in the flow; the value is filled in when the flow runs.

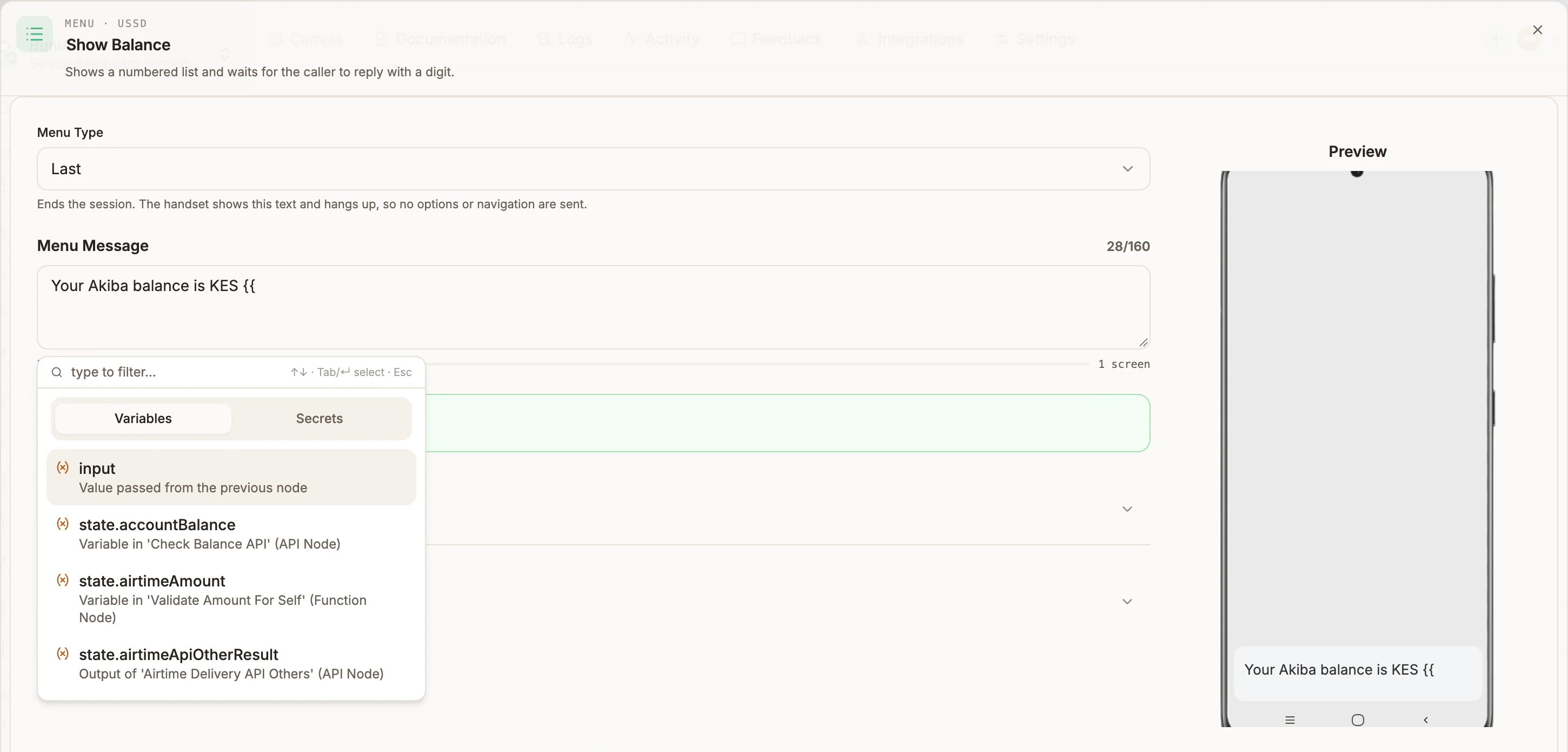

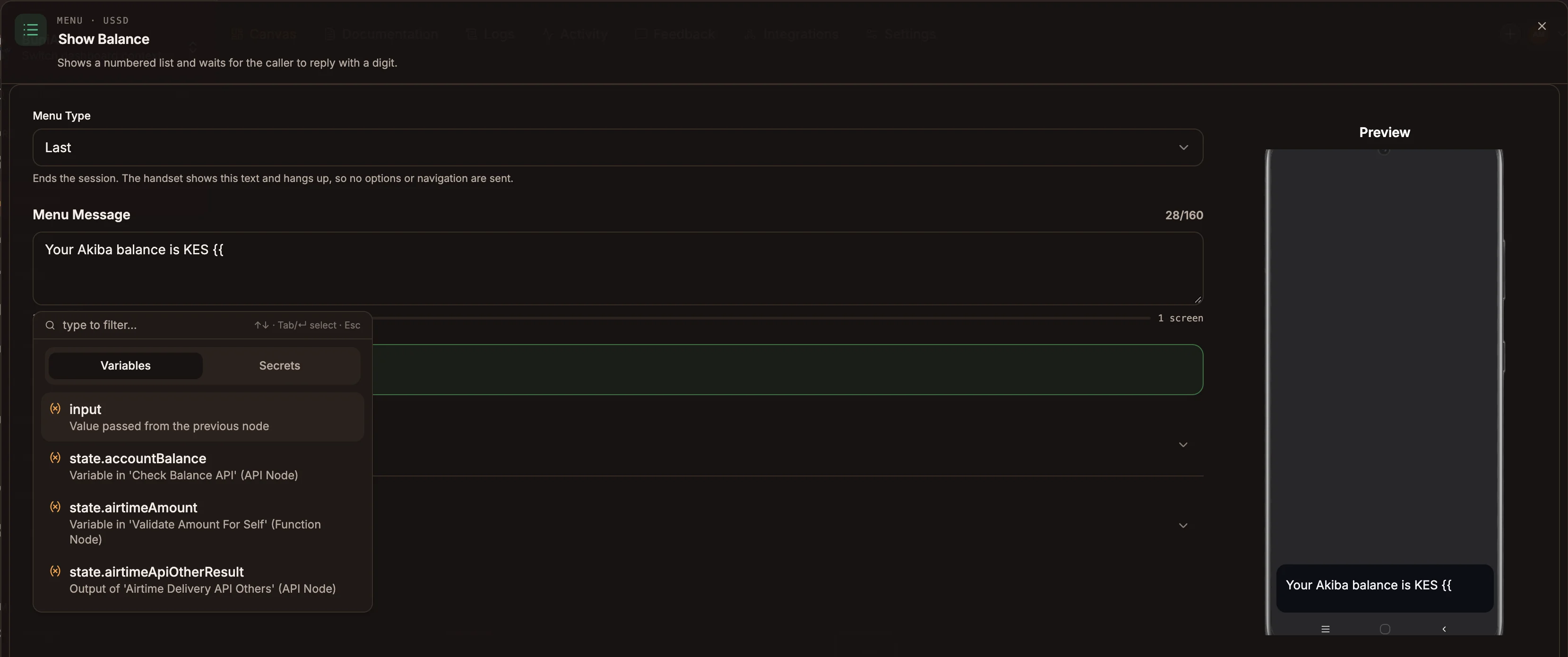

The variable picker
Type {{ (or ${) in any field that supports templates and the picker opens under the cursor.
- Variables lists
input, every output variable and state reference used in the flow (with the node it comes from), and the platform variables for your project type. - Secrets lists your workspace credentials. Typing
CREDENTIALSswitches to this tab. - Keep typing to filter. Use the arrow keys to move, Tab or Enter to insert, and Esc to close.
- Create Variable and Create Credential at the bottom add a new one without leaving the node.
Choosing a variable inserts {{state.name}}; choosing a secret inserts ${CREDENTIALS.NAME}.
Chatbot platform variables
In chatbot projects the picker also offers values that describe the current message.
| Variable | What it holds |
|---|---|
intent.name | Name of the recognised intent |
intent.confidence | Confidence score of the intent recognition, 0 to 1 |
intent.inputTranscript | The user's original message that triggered the intent |
intent.state | Intent state: InProgress, ReadyForFulfillment, Fulfilled or Failed |
intent.slots | Slot values extracted from the message |
sessionAttributes.platform | Messaging platform, such as whatsapp, telegram or messenger |
sessionAttributes.sessionId | Session or conversation ID |
sessionAttributes.messageId | ID of the current message |
sessionAttributes.collectedSlots | Slot values collected during the intent |
sessionAttributes.from, sessionAttributes.chat | JSON strings describing the sender and the chat |
requestAttributes.platform | Messaging platform of this request |
requestAttributes.id | The user's ID on the platform |
requestAttributes.username | The user's username, if the platform provides one |
requestAttributes.fullName | The user's full name |
requestAttributes.timestamp | When the message was sent |
requestAttributes.messageId | The platform's ID for the message |
The picker also lists state.last_event, state.last_response, state.last_utterance, state.intent_confidence and state.ai_agent_content under System. The runtime does not currently fill these in, so do not build logic on them. Use intent.confidence and the AI Agent node's own output variable instead.
